Capabilities / Laser Cutting Service

Laser Cutting Service

SUDACNC delivers high-precision fiber laser cutting service for metal sheets and structural tubes. Our high-power CNC fiber laser systems achieve ±0.05mm repeatable tolerance, process intricate complex cutouts, micro holes and fine slits with minimal heat-affected zone and low burr edges. Compatible with carbon steel, stainless steel, aluminum, brass and copper materials, supporting single prototype samples and large nested mass production batches. All laser cut blanks can be directly processed in-house via deburring, bending, welding, sandblasting and powder coating to deliver finished sheet metal assemblies without third-party outsourcing.

What Is Fiber Laser Cutting?

Fiber laser cutting uses a focused high-energy fiber laser beam to instantly melt and blow away metal material via high-pressure auxiliary gas (nitrogen/oxygen), digitally controlled by CNC programs to cut custom 2D outlines and tubular profiles according to CAD drawings.

Compared with waterjet, plasma and guillotine shear cutting, fiber laser delivers the highest dimensional precision, smallest kerf width, fastest cutting speed for thin & medium metal sheets, and the ability to fabricate ultra-fine intricate geometries unachievable by traditional cutting methods. It features tiny heat-affected zones to reduce thermal warpage, minimal post-cut deburring labor, and intelligent nesting software to maximize raw sheet material utilization and lower unit blanking cost for mass orders.





Explore Our Laser Cutting Technical Capabilities

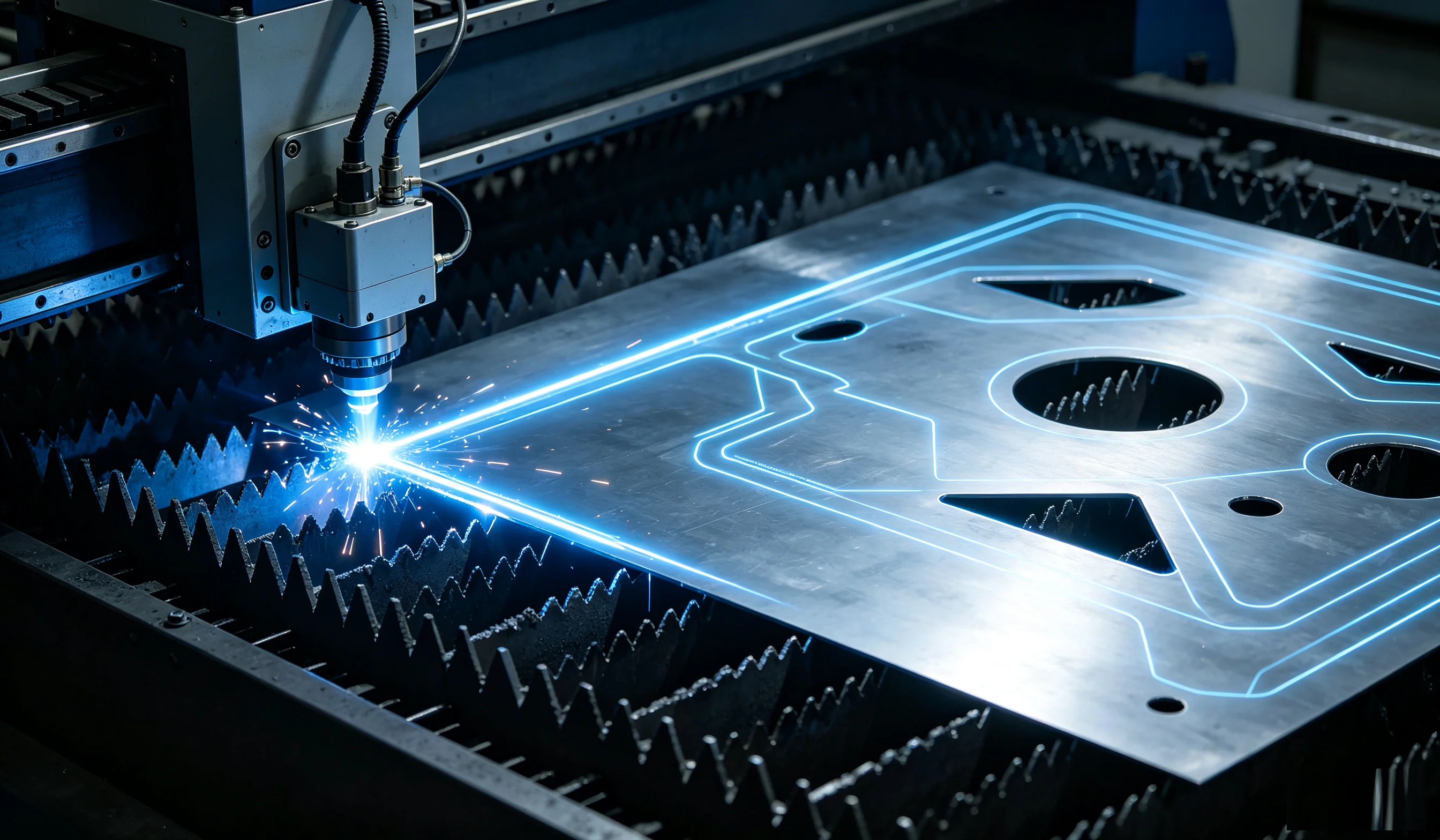

CNC Fiber Laser Cutting Equipment In Production

Core Advantages Of Our Laser Cutting Service

±0.05mm ultra tight tolerance, micro fine feature cutting, fast thin sheet processing speed, minimal HAZ, full sheet & tube cutting capacity, integrated full sheet metal fabrication workflow.

Highest Precision ±0.05mm
0.1mm minimum micro hole, tiny 0.2~0.4mm kerf for ultra-fine intricate patterns

Ultra-Fast Thin Sheet Cutting
3~10x faster than waterjet, high nesting efficiency reduces raw material waste

Dual Sheet & Tube Cutting
Flat sheet 2D blanking + round/square tube 3D profile cutting on dedicated laser lines

One-Stop Full Fabrication
Deburr, bend, punch, weld, powder coat & assembly all processed in-house after laser cutting

Two Laser Cutting Modes: Sheet & Tube Laser Cut Tolerance, Thickness & Minimum Feature Standards Supported Laser Cut Metal Material List Auxiliary Gas Selection & Post-Cut Processing DFM Drawing Design Guidelines For Laser Cutting Laser Cutting Main Industry Applications Laser Cutting FAQs VS Waterjet / Plasma / Shear
Two Laser Cutting Modes: Sheet & Tube Laser Cut Tolerance, Thickness & Minimum Feature Standards Supported Laser Cut Metal Material List Auxiliary Gas Selection & Post-Cut Processing DFM Drawing Design Guidelines For Laser Cutting Laser Cutting Main Industry Applications Laser Cutting FAQs VS Waterjet / Plasma / Shear

Two Core Laser Cutting Modes: Flat Sheet & Structural Tube Laser Cutting

We operate independent flat sheet fiber laser production lines and dedicated tube laser cutting equipment to cover all 2D blanking and 3D tubular profile cutting demands. CNC fiber laser systems use programmable nitrogen/oxygen auxiliary gas to optimize edge finish for different metals and thicknesses, deliver consistent precision across single prototype samples and large nested mass production batches, with intelligent sheet nesting software to maximize raw material utilization and lower unit blanking cost.

Unique Strengths Of Our In-House Laser Cutting Lines

  • Dual Sheet & Tube Laser Capacity: Process flat metal plates and round/square/rectangular structural tubes on separate dedicated equipment
  • Micro Fine Feature Capability: Minimum 0.1mm internal holes and ultra-narrow slits unachievable by plasma or shear cutting
  • Controlled Minimal HAZ: Tiny heat-affected zone under 0.3mm to avoid thin sheet thermal warpage & deformation
  • Two Auxiliary Gas Options: Nitrogen for smooth dross-free cosmetic edges; oxygen for low-cost thick carbon steel cutting
  • Seamless Downstream Fabrication: Laser cut blanks directly flow to deburring, bending, punching, welding and coating stations without cross-factory transit

Flat Sheet Laser Cutting VS Tube Laser Cutting Introduction

1. Flat Sheet Fiber Laser Cutting (2D Blanking)

  • Max working sheet size: 3000 × 1500 mm standard pallet
  • Process thickness range: 0.1mm ultra-thin foil up to 30mm carbon steel
  • Core output: Custom 2D flat blanks, panels, brackets, ventilation cutouts, decorative lettering
  • Advantages: High nesting efficiency, ultra-fast cutting speed for thin-medium sheets, full complex outline support

2. 3D Tube & Profile Laser Cutting

  • Supported tube shapes: Round, square, rectangular, oval metal hollow tubes & solid angle profiles
  • Tube diameter range: 10mm ~ 200mm, max tube length 6000mm single loading
  • Core output: Tubular slots, notches, through holes, end miter cuts for mechanical frames & handrails
  • Advantages: One-step 3D profiling without secondary drilling/milling, precise angular & positional hole tolerance

Laser Cutting Dimensional Tolerance, Thickness & Minimum Feature Design Specifications

Specification Parameter Standard Laser Cutting Value
Overall Dimensional Tolerance (Thin Sheet ≤10mm)±0.05 ~ ±0.10 mm
Overall Dimensional Tolerance (Medium Thick Plate 10~25mm)±0.10 ~ ±0.18 mm
Kerf Cutting Width0.2 ~ 0.4 mm adjustable via nozzle setup
Minimum Internal Hole Diameter0.1 mm (thin stainless steel); ≥1.2× material thickness general rule
Minimum Narrow Slit Width0.15 mm minimum
Minimum Inner Corner Fillet RadiusR0.1 mm to eliminate heat burn hot spots
Minimum Part Border Margin From Sheet Edge≥0.8 × material thickness
Max Processable Carbon Steel Thickness30 mm high-power fiber laser
Max Processable Stainless Steel Thickness25 mm 304 / 20 mm 316L
Max Processable Aluminum Alloy Thickness20 mm 5052 / 6061
Max Processable Brass / Copper Thickness8 mm brass / 12 mm pure copper
Quality Inspection ItemsCMM dimensional scan, burr height measurement, edge surface roughness visual inspection

Submit DXF/DWG CAD Drawing For Free Laser Cutting DFM & Cost Evaluation

Full Metal Materials Compatible With Our Fiber Laser Cutting Service

Highly reflective copper & brass require optimized laser power and nitrogen assist gas to reduce reflection instability; ultra-thin foil parts adopt low-power precise laser parameters to avoid burn-through.

Mild cold rolled / hot rolled carbon steel, galvanized steel, wear-resistant NM400 plate, stainless steel 201, 304, 316L, 430

Carbon steel uses oxygen assist gas for fast low-cost cutting; stainless steel uses high-purity nitrogen to achieve dross-free mirror smooth edges for decorative cabinet panels.

Aluminum 1100, 5052, 6061, 6063, 7075 alloy sheets & hollow tubes

Aluminum high reflectivity requires high-power fiber laser + nitrogen assist gas; thin aluminum sheets strictly control cutting path sequence to minimize thermal warpage.

Pure copper C110, brass C2600 / C36000 bronze thin sheets for signage, conductive contact blanks, decorative hardware

Limited maximum cutting thickness (8~12mm), reserved for thin precision decorative & electrical conductive components only; thick copper alloys recommend waterjet cold cutting.

Material & Thickness Matching Consultation For Laser Cutting Projects

Laser Cutting Auxiliary Gas Options & Full Post-Cut Secondary Treatments

Nitrogen Gas Cutting: High-pressure inert gas blows molten metal away without oxidation, zero dross, smooth silver matte cutting edges, ideal for stainless steel, aluminum, brass cosmetic precision parts; higher gas consumption cost.

Oxygen Gas Cutting: Oxidation reaction accelerates carbon steel melting speed, low operating cost for thick structural carbon steel base plates; cut edge forms dark oxide dross requiring post grinding & deburring.

Automatic tumble deburring machine removes micro laser dross and sharp burrs on all cut edges; rotary edge rounding to R0.5~R2.0mm safe smooth edges for assembly handling, eliminate scratch risk during bending & welding.

Degreasing & oxide cleaning to remove laser melt residue; stainless steel passivation anti-rust treatment; sand blasting uniform matte texture to boost powder coating adhesion for finished painted assemblies.

Custom Nitrogen/Oxygen Cutting & Deburring Add-On Service

Critical DFM Design Rules To Avoid Laser Cutting Defects & Rework

2D Drawing Design Feature Laser Cutting Mandatory Design Rule
Internal Hole Minimum Diameter≥1.2 × sheet material thickness; thin stainless can reach 0.1mm micro hole under special parameter
Narrow Slit Minimum Width≥0.15mm minimum; avoid slits thinner than kerf width to prevent material bridging
Inner Sharp CornersAdd minimum R0.1 fillet radius; sharp zero-radius corners create concentrated heat burn marks
Thin Long Rib FeaturesThin ribs below 1.0mm easily warp from thermal heat; add connection tabs during nesting to fix flatness
Material Border MarginReserve ≥0.8× thickness blank margin around all parts to prevent sheet edge cutting instability
Thick Plate Taper ControlPlates over 12mm generate slight beam taper; critical mating surfaces reserve tolerance allowance

Free Pre-Production DXF Drawing DFM & Nesting Optimization Review

Key Industry Application Scenarios For Laser Cut Metal Parts

Electrical Equipment & Cabinet Enclosures
304 stainless & cold rolled steel electrical cabinet panels, ventilation cutout plates, control box door frames, intricate industrial equipment housing blanks with dense micro holes.
Automotive & Mechanical Machinery Parts
Aluminum alloy fixture brackets, carbon steel machine base frames, EV sensor thin sheet housings, tubular laser cut chassis support tubes for mechanical assembly.
Architectural Decor & Signage Hardware
Stainless decorative facade panels, brass custom logo letter cutouts, metal stair support plates, advertising signage hollow laser cut profiles for construction & commercial decoration.
Medical & Precision Custom Hardware
Thin aluminum medical device equipment housings, stainless surgical instrument frame blanks, copper conductive contact sheets, small precision fixture plates with ultra-fine cut geometry.

Custom Laser Cutting Blank Solutions For Your Industry Manufacturing Project

Laser Cutting Frequently Asked Questions & Four Cutting Process Comparison

Primary supported vector files: DXF, DWG, AI, PDF vector drawings; 3D STEP/SLDPRT files can be converted to 2D cutting outlines internally. Pixel raster images (JPG, PNG) cannot be used for precision laser cutting production due to low dimensional accuracy.

Select waterjet cutting for ultra-thin reflective copper/brass prone to laser reflection burn, plate thickness over 25mm alloy, heat-sensitive thin sheets that cannot tolerate any HAZ, and non-metal materials (acrylic, wood, foam, stone) which laser will melt or burn.

Yes, all laser cut flat and tubular parts can flow in-house to CNC bending, punching, TIG/MIG welding, sand blasting, powder coating and final hardware assembly as full turnkey sheet metal fabrication service without outsourcing external vendors.

Simple small batch thin sheet blanks: 1~2 working days; standard complex cabinet panels with nitrogen smooth cutting: 2~4 days; thick plate & tube laser cutting batches with automatic deburring finish: 4~6 working days including full dimensional inspection.

Laser Cutting VS Waterjet VS Plasma VS Guillotine Shear Full Comparison Table

Swipe horizontally to view full table columns
Comparison Item Fiber Laser Cutting Abrasive Waterjet Cutting CNC Plasma Cutting Guillotine Shear Cutting
Cutting Principle Focused fiber laser beam thermal melt & blow material via assist gas High-pressure water + garnet abrasive cold mechanical erosion, zero heat generation High-temperature plasma arc thermal melting thick conductive carbon steel plate Dual blade mechanical shear split only straight linear sheet edges
Dimensional Precision Level Highest ±0.05~±0.10mm, micro fine feature support High ±0.10~±0.15mm, no thermal deformation Rough low ±0.25~±0.40mm, large HAZ & slag residue Medium ±0.12~±0.20mm, limited to straight cuts only
Optimal Thickness Range 0.1 ~ 25mm thin & medium metal sheets & tubes, fastest cutting speed under 10mm 1 ~ 100mm all materials, ideal for thick alloy & heat-sensitive thin plates 6 ~ 80mm thick carbon structural steel only, low precision rough blanking 0.3 ~ 6mm thin raw sheet straight strip splitting pre-processing
Material Compatibility All ferrous steel, aluminum, brass, copper; limited non-metal compatibility (melts plastic/wood) 100% universal: all metals, acrylic, wood, foam, glass, stone composite materials Only conductive ferrous carbon steel; cannot cut aluminum, copper or non-metals All thin flat metal sheets, only simple straight linear cutting outlines
Heat Affected Zone (HAZ) Minimal HAZ <0.3mm, slight thermal risk on ultra-thin sheets Zero HAZ cold cutting, no warpage or oxidation discoloration Large HAZ >0.5mm, obvious thermal distortion & edge oxidation slag No heat generation pure mechanical cutting
Unit Operating Cost Level Medium cost, balanced speed & precision for thin intricate custom parts Highest cost due to abrasive garnet & high-pressure water consumption Lowest cost for large thick carbon steel structural blanking batches Ultra-low cost fast straight strip splitting pre-processing
Best Matching Application Scenarios Electrical cabinet panels, decorative metal trim, precision small brackets, perforated tubular frames with complex cutouts Aluminum/copper alloy thick fixture plates, heat-sensitive thin sheets, acrylic/wood non-metal custom blanks without burning edges Heavy machinery base frames, construction structural thick steel support plates with non-critical dimensional tolerance Raw sheet straight strip splitting before secondary laser intricate blanking processing
