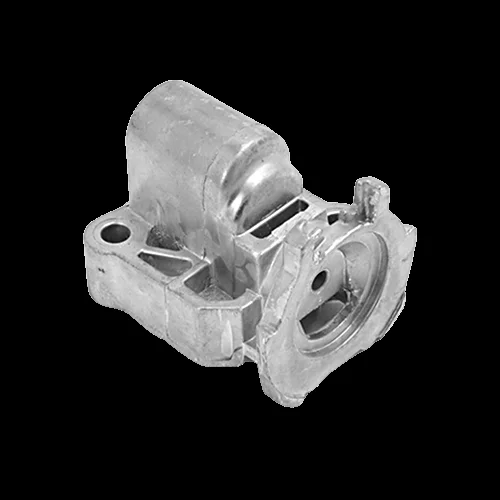

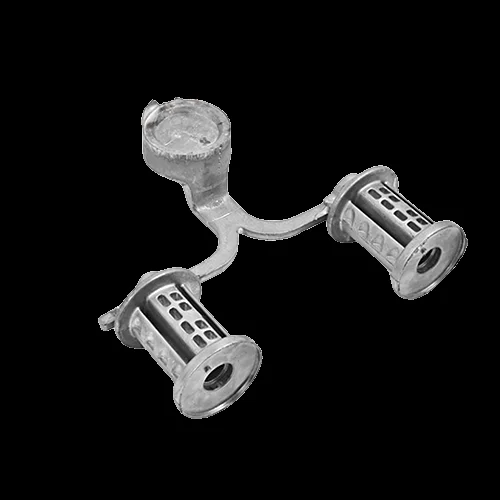

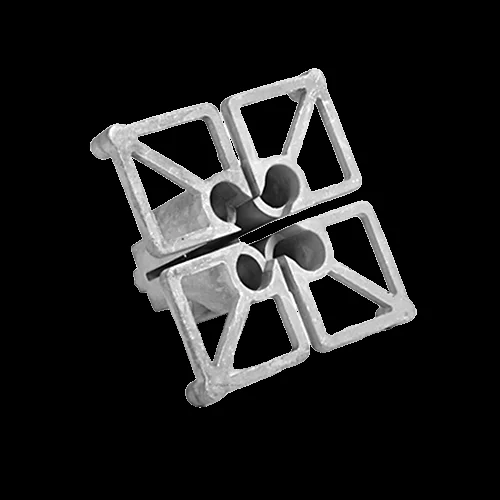

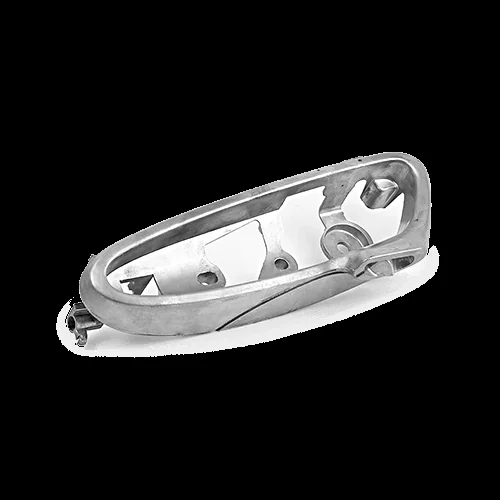

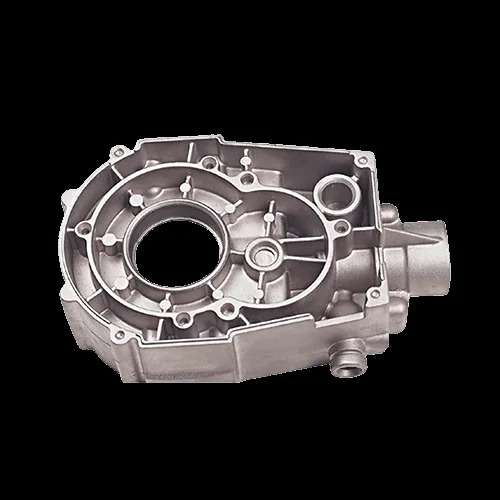

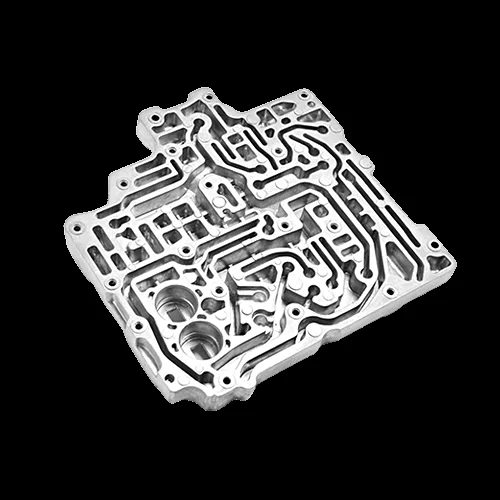

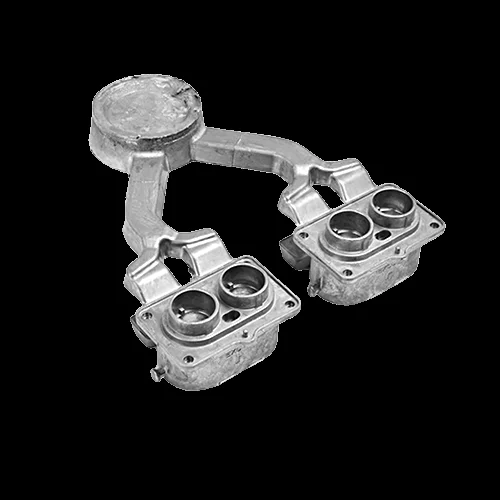

What is Die Casting?

Die Casting Process

Die casting is the manufacturing process of choice when producing high volumes of relatively complex metal parts and is widely used due to its versatility, reliability, and accuracy. Die casting eliminates all or most secondary operations needed to make a metal part; however, post-machining is common to meet tighter critical-to-function tolerances. Die casted parts can also be post-processed in any finish their respective CNC machined counterparts can.

Like injection molding , die casting requires the fabrication of a mold tool--called a die--that can have one or multiple cavities. The process works for softer alloys, including aluminum and zinc alloys, due to their relatively lower melting temperature. Die casting works by injecting molten metal into a die cavity, which takes the shape of the part and hardens into place before removal. Depending on the project scope, die casting can be low- or high-pressure, using a ladle or plunger to deposit metal. Die casting can produce highly complex, tight-tolerance parts in a repeatable manner at very high production volumes. Modern die casting methods such as squeeze casting and semi-solid metal casting produce high-quality parts for nearly every industry. Die casting companies will often specialize in casting aluminum or zinc, with aluminum making up roughly 80% of die cast parts.

Our project managers and experts personally review and manually quote each die casting project to ensure we meet your unique needs while providing a fast and easy manufacturing experience. Learn more about the process and our capabilities in the sections below.

SUDACNC's Die Casting Service

Start A Quote

Upload your files to the SUDACNC Quote Engine and configure your project. Our team will consult with you to ensure your specifications, lead time, and price fit your project needs. We will provide a DFM report for approval before kicking off tooling.

Sample Approval

Once your project is kicked off we will build a high-quality die. After the tooling is created we will send out part samples, called T1s, for approval.

Production Begins

Once satisfied with your samples, we move forward with production and deliver the parts. Rest easy knowing SUDACNC is handling supplier management and logistics throughout the process. You own your tooling and can easily re-order as needed to meet demand.

Die Casting Services Available from SUDACNC

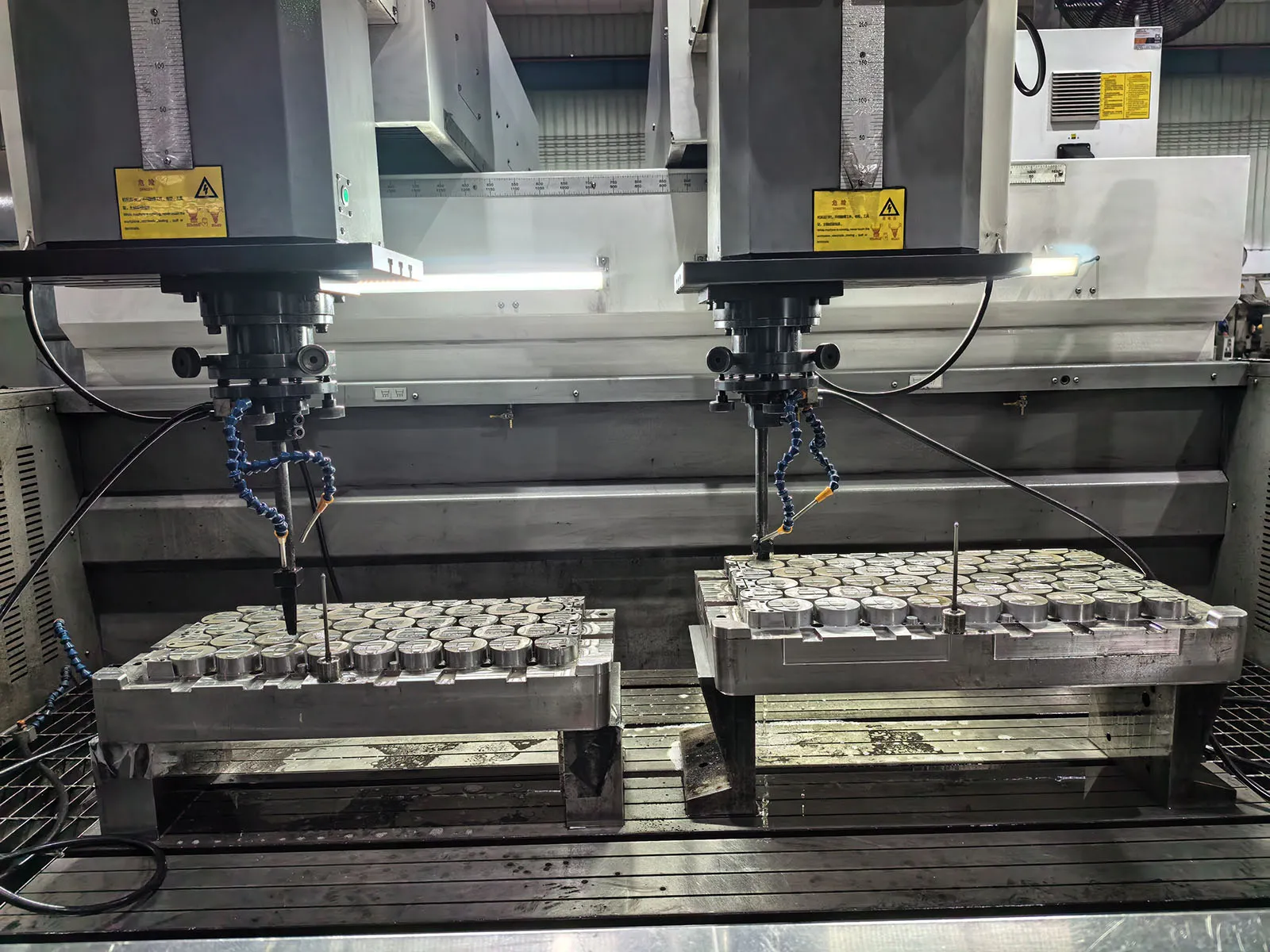

SUDACNC partners with die casters that utilize the latest die casting machines and technology to deliver high-quality, on-demand parts to a wide variety of industries. Our offering focuses on the two leading types of die casting: hot chamber casting and cold chamber casting. Both types can produce parts with complex geometry, close tolerances, and robust mechanical properties.

Hot Chamber Die Casting

Also known as gooseneck casting, the hot chamber die casting process is the most popular die casting process. It is optimal for working with lower melting point alloys such as zinc, magnesium, and lead. A holding pot is filled with metal and heated with hot chamber die casting until molten by an attached or built-in furnace. A feature of the hot chamber system referred to as the gooseneck forms a holding chamber within the pot and a nozzle-like pathway that connects to the injection cavity of the fixed half of the die. A plunger that sits above the chamber allows it to fill with molten metal from the holding pot. When the chamber is loaded, the plunger lowers and forces molten material up the gooseneck into the die cavity. The mold is held together under pressure while the metal cools and solidifies in the mold. Once the metal is cool enough, the dies open, and the casted piece ejects via ejector pins.

Cold Chamber Die Casting

With the cold chamber die casting process, the chamber remains at room temperature and does not have a holding pot of molten metal. Metal is melted in a separate furnace and deposited into the shot chamber through a pouring hole by hand with a ladle. In cold chamber die casting, the mold is connected directly to the shot chamber and does not utilize a plunger system. Instead, a ram forces molten metal into the mold and held under high pressure while the metal solidifies. This type of die casting is suitable for comparatively higher melting temperature materials such as aluminum.

Metal Materials for Die Cast Parts

Several different metal materials are available to choose from when manufacturing using die casting. The material you choose will depend on your intended use for the product. For instance, cast aluminum parts are common in aerospace or automotive applications where corrosion resistance and weight reduction are essential factors. You can learn more about the main types of die casting materials we offer in the sections below. If you have a specific material request, just let us know!

Aluminum Die Casting

Aluminum alloys are the most widely used for die cast parts. Aluminum die casting suppliers benefit from the total recyclability of the material and its ease of use. Due to the comparatively higher melting point, aluminum die casting may require a cold chamber casting process. Engineers use cast aluminum parts primarily for their great strength to weight ratios, dimensional stability, and diverse finishing options. Some of the other common characteristics of cast aluminum alloys are:

Engineers and designers can choose from a wide range of alloys for their aluminum casting parts. SUDACNC offers the most popular aluminum die casting alloys, including:

Zinc Die Casting

Zinc is the easiest to cast material among the die casting metals and is typically used in hot chamber processes. Molten zinc has exceptional casting fluidity and a lower melting point. Its strength and stiffness allow it to produce parts with thinner walls and highly detailed features and maintain tight tolerances. The low melting point of die casting zinc alloys means the zinc die cast components cool off and solidify more quickly, which results in the fastest production rates of the die casting materials. Zinc is an all-around well-performing material due to its balance of mechanical and physical characteristics, which include:

Available Die Casting Finishes

Applications of Die Castings

The versatility and high production potential of die casting enable it for various applications and industries. Die casting products that are small to medium in size with complex features are typically well suited for the process. Examples include consumer and industrial products, automotive parts, aerospace components, and parts for medical devices. Die casting products is a great option when you need high-volume metal parts that may be too large for similar high-volume processes such as Metal Injection Molding (MIM).

Die Casting Advantages and Disadvantages Advantages of Die Casting

Complex Geometry

Die casting can reliably produce custom die cast parts with thin walls and challenging geometry that is durable and dimensionally stable.

Strength

Metal die castings are typically stronger than plastic injection molded parts and more resistant to high temperatures. Metals such as aluminum offer exceptional strength-to-weight ratios.

Precision

Die casting offers typical tolerances ranging from +/-0.003″ – 0.005″ per inch but can go as tight as +/- .001” depending on your specifications, part geometry, and material.

Custom Finishes

Metal finishers can produce cast parts with smooth or textured surfaces, paints, and plating finishes. Finishes can protect from corrosion and improve cosmetic appearance.

Disadvantages of Die Casting

Tooling Cost

While the per piece cost of die cast parts is relatively low, the tooling dies and maintenance costs can require a high initial investment.

Not for Low Quantities

Due to the higher upfront tooling costs, die casting is not economical for low-volume runs. We recommend only considering die casting for quantities greater than 1000.

Lead Times

Before production, many steps must be accomplished first, often taking multiple weeks to execute. These steps include addressing DFM concerns, tool design, manufacturing the tools, and creating samples. The upfront checks and validations make die casting one of the slower manufacturing processes to ramp up compared to others.

Our team of experts will be working with you closely throughout the process and offer suggestions and options to provide you with the best possible turnaround while working to meet your unique needs.
